Lawrence F. London, Jr. wrote:
> Jeff wrote:
> > Just curious, can someone give me an explanation or a how to on double
> > digging a plot for biointensive plantings?
>
> The essence of it is that you invest a lot of effort and materials up
> front, inverting the soil, fragmenting the crumb structure, with
> associated temporary disruption of soil life and soil structure,
> oxidation of organic matter and release of co2 through exposure of humus
> to air. You remove much of the soil in the bed, add organic matter and
> mineral based soil amendments to it, homogenize these materials then
> return the amended, enriched soil mix to the bed. This is done in

> increments of one (typical short (42" to 48") English D-handled) digging
> spade blade width wide and one spade blade length deep for the width of

One of these:

Wooden D-handled digging spade:
28" length for most people, 32" for tall people or get the long straight
handled version, see below.
http://www.bulldogtools.co.uk/img/products/thumbnails/5610012820_500x263.jpg
http://www.bulldogtools.co.uk/index.php?mod=3&id=7&rid=1
Long straight handled version:
http://www.bulldogtools.co.uk/index.php?mod=3&id=12&rid=1
This is the big dog on the block when it comes to traditional English
hand gardening tools; these were available at the beginning of the
modern organic gardening and farming movement in the 1960's:
Bulldog - Quality Garden, Contractor and Agricultural Tools
Rollins Bulldog Tools
"Bulldog Tools have been made at Clarington Forge in Wigan, England, for
over 200 years. Generations of Farmers, Contractors and Professional
Landscapers stand testimony to a quality of product upon which their
livelihoods depend. The skill and craftsmanship that were the key to the
company's success in those early days are still maintained and are
available to this day."
\|/
 =
/|\
You will also need:
1) a D-handled garden spade (less angle between handle and blade)
2) a D-handled digging fork
3) a D-handled spade fork
All of these can be seen at the Bulldog site
4) You will need an eye hoe, preferably the Japanese farmer hoe with
short handle and a few other tools, available from Hida Tool:
Hida Tool
http://www.hidatool.com/shop/shop.html
(this is the most useful eye hoe to get, the other is lighter in weight)
Kusakichi Brand #524 Farmer Hoe
item#   blade length    overall size    price
        N-7524  7inch x 5inch   41inch  $49.20
This is an amazing tool, used to clean silt and OM from between beds to
put back on beds - ridge making hoe - or move dirt or make beds
Kusakichi Brand #553 Ridge Hoe
item#   blade length    overall size    price
        N-7553  15inch x 6inch  48inch  $69.60
Kusakichi Brand #531 Farmer Rake
item#   blade length    overall size    price
        N-7531  8 5/8inch x 5 3/4inch   41 1/4inch      $59.00
This is a three wide-tined hoe, great for weeding and tilthing,
disturbs soil structure less.
\|/
 =
/|\
Sneeboer tools are excellent. Great if you can find a source for them in
the USA. The tools to get from them are the variois sizes and
configurations of their SEEDING RAKES; they are indispensible!
They also have a great garden spade and an exceptional Dutch-style spade
fork, a one of a kind tool, as are the seeding rakes (you will find it
difficult to do without several sizes of this useful tool.
SNEEBOER & ZN
http://www.sneeboer.com/
Products
http://www.sneeboer.com/index2.php?page=19
(an amazing array of quality tools)
These are the seeding rakes:
-The best seeding rakes for preparing a seedbed for new plantings are
-the ones with 6 and 8 medium length tines - the others are less
-useful for this aplication.
Sloothark 4t
4 long tines & 185 cm length
http://www.sneeboer.com/index2.php?page=19&articleID=114
Klauw of Hark 8t
8 medium tines
http://www.sneeboer.com/popup.htm?beheer/ass/img/org_product115-1.gif
http://www.sneeboer.com/index2.php?page=19&articleID=115
Klauw of Hark 6t
6 long tines
Tuinhark 8t
8 medium tines, 167 cm overall length
http://www.sneeboer.com/index2.php?page=19&articleID=117
Tuinhark 6t
http://www.sneeboer.com/beheer/ass/img/org_product118-1.jpg
6 medium tines   167 cm
http://www.sneeboer.com/index2.php?page=19&articleID=118
Tuinhark 5t
http://www.sneeboer.com/beheer/ass/img/org_product119-2.jpg
5 long tines  167 cm. length
http://www.sneeboer.com/index2.php?page=19&articleID=119
Tuinhark 4t
4 long tines
http://www.sneeboer.com/beheer/ass/img/org_product120-2.jpg
http://www.sneeboer.com/beheer/ass/img/org_product120-1.jpg
http://www.sneeboer.com/index2.php?page=19&articleID=120
Fijnhark 10 t
http://www.sneeboer.com/beheer/ass/img/org_product207-2.jpg
10 medium tines
http://www.sneeboer.com/index2.php?page=19&articleID=207
Amerikaanse Hark 10 t
American style rake
10 medium tines
http://www.sneeboer.com/beheer/ass/img/org_product208-2.jpg
http://www.sneeboer.com/index2.php?page=19&articleID=208

http://www.sneeboerusa.com/
Sneeboer USA
c/o Cole Gardens
430 Loudon Road
Concord, NH 03301
phone 603-229-0655
fax 603-229-0657
doug@sneeboerusa.com

Garden Rake, 4 prongs, fine toothed
http://www.sneeboerusa.com/Images/Large/6007.jpg
http://www.sneeboerusa.com/Images/6007.jpg
Width : 5.2 in (13 cm)
Handle Length : 59 in. (150 cm)
Price : $83.00
Product Code : 6007

American Rake, 10 tined
http://www.sneeboerusa.com/Images/Large/6070.jpg
http://www.sneeboerusa.com/Images/6070.jpg
Width : 12 X 3.1 in (42 X 8 cm)
Handle Length : 66.9 in. (170 cm)
Price : $118.00
Product Code : 6070
\|/
 =
?|\

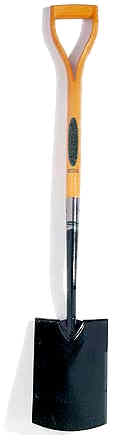

http://www.the-organic-gardener.com/images/garden-tool-english-spade.jpg
http://www.vegetablegardener.com/assets/uploads/posts/2873/kg17-double-digging-01_lg.jpg
http://www.gardeningknowhow.com/images/double-digging.jpg
http://hubpages.com/hub/HubMob-Topic-Of-The-Week-Green-Thumb-Hubbers-Landscaping--gardening-and-loving-your-yard_1
http://shop.waycooltools.com/images/1192658156236-807030603.jpeg
This company offers an amazing selection of good tools for biointensive
gardeners and double diggers, much to choose from:
WayCoolTools.com
# P.O.Box 235
White Hall, VA 22987
# 877-353-7783
# contact@waycooltools.com
# 434-823-4600
http://shop.waycooltools.com/category.sc?categoryId=3

> the bed (38-50" wide depending on the gardener's height).
>
> After this process is completed you need never again turn your soil,
> except to a depth no greater than is necessary to control newly emerging
> weeds, break crust and create a fine, loose seedbed. You now have
> biointensive no-till, permanent raised beds.
>
> This technology has been around for centuries and it works.
> There is a very big net gain for soil, its inhabitants and the environment.
>
> See John Jeavons books, Alan Chadwick's literature and lectures (links
> on my website) and Aquatias' "Intensive Culture of Vegetables, French
> System".
>
> Double  digging is as essential and indispensible to gardening anywhere
> in the world, where the climate does not mandate other methods, as grain
> is to bread.
>
> I'll work up a complete description of the method with variations next.

Here's more; this is good material from the BBC:

Gardening Guides
Digging your garden
http://www.bbc.co.uk/gardening/basics/techniques/soil_digging1.shtml
Double digging

Double digging is useful when drainage needs to be improved, or if the
ground has not been previously cultivated. This is a time-consuming
process but is worth the hard work and will result in good soil.

    * The soil is worked to a depth of two spades, rather than one, and
it’s essential to keep the two layers of soil (subsoil and topsoil)
separate. In order to do this, the lower half of the trench can be dug
over in situ.
    * Remove the soil from the upper and lower spits of the first
trench and from the upper spit of the second, placing it aside on the
ground in three separate, clearly marked piles.
    * The soil can then be transferred from the lower spit of the
second trench to the base of the first trench, and from the upper spit
of the third trench to the top of the first. This ensures that the
topsoil and subsoil remain separate.
    * Continue digging trenches in the same way, until you reach the
end of the bed where soil saved from the first trench can be used to
fill the appropriate layers in the final trench.
\|/
 =
/|\
And this great blog article with extensive links on double digging
using the Chadwick/Jeavons French Intensive biointensive method:
Double Digging
http://constructal.blogspot.com/2006/04/double-digging.html
"In 2004 we also volunteered at the Center for Sustainability to help
double dig some of their garden plots. Double digging is the first step
in the bio-intensive gardening technique, which we were unfamiliar with.
So I did a little bit of research on the technique and this year I am
going to try it on our garden plot. This technique was developed by Alan
Chadwick and furthered and promoted by John Jeavons of Ecology Action.
It aims at maximizing the yield from the available area AND maintain the
soil quality at the same time through sustainable organic methods of
gardening. The center for sustainability has a very good webpage about
this technique. Some other links I found are at the bottom of this post."
Center For Sustainability http://www.engr.psu.edu/cfs/
and there, on double digging:
http://www.engr.psu.edu/cfs/projects/biointensive.aspx
Ecology Action http://www.growbiointensive.org/biointensive/Ecology.html
See also Bountiful Gardens http://www.bountifulgardens.org/
Other links:
http://constructal.blogspot.com/2006/04/double-digging.html#Links
Biointensive Gardening Technique
http://www.engr.psu.edu/cfs/projects/biointensive.aspx
Bountiful Gardens
http://www.bountifulgardens.org/growbiointensive.html
Ecology Action Biointensive Gardening
http://www.growbiointensive.org/biointensive/GROW-BIOINTENSIVE.html
Books by John Jeavons
http://www.growbiointensive.org/biointensive/book.html
\|/
 =
/|\
Soil Quality resources, webforum archives, materials from various lists:
souscayrous' biological farming & permaculture collection
Hazelip, Bonfils and more
http://www.ibiblio.org/ecolandtech/souscayrous
Soils In Biological Agriculture
http://www.ibiblio.org/ecolandtech/permaculture/mailarchives/discussion-threads/soil-quality/
Remineralize the Earth
http://www.ibiblio.org/ecolandtech/orgfarm/remineralization/remineralization.selected-writings
Additional Soil Quality Links and Literature
http://www.ibiblio.org/ecolandtech/soil-links+lit.html
Compost Tea, Soil Foodweb, Soil Quality Discussion:
Archive 1
http://www.ibiblio.org/ecolandtech/SoilWiki/message-archives/composttea+soilfoodweb+soilquality/1/maillist.html
Archive 2
http://www.ibiblio.org/ecolandtech/SoilWiki/message-archives/composttea+soilfoodweb+soilquality/2/maillist.html
Archive 3
http://www.ibiblio.org/ecolandtech/SoilWiki/message-archives/composttea+soilfoodweb+soilquality/3/maillist.html
Archive 4
http://www.ibiblio.org/ecolandtech/SoilWiki/message-archives/composttea+soilfoodweb+soilquality/4/maillist.html
Archive 5
http://www.ibiblio.org/ecolandtech/SoilWiki/message-archives/composttea+soilfoodweb+soilquality/5/maillist.html
\|/
 =
/|\
Gardening Hand Tool Sourcelist
(needs revising)
http://www.ibiblio.org/ecolandtech/documents/gardening-hand-tools.faq
Soil and Health Library
http://www.soilandhealth.org/index.html
\|/
 =
/|\
Glomalin: Hiding Place for a Third of the World's Stored Soil Carbon
http://www.ars.usda.gov/is/AR/archive/sep02/soil0902.htm

Glomalin, extracted from
undisturbed Nebraska soil and
then freeze-dried.
(K9969-2)

A sticky protein seems to be the unsung hero of soil carbon storage.

Until its discovery in 1996 by ARS soil scientist Sara F. Wright, this
soil "super glue" was mistaken for an unidentifiable constituent of soil
organic matter. Rather, it permeates organic matter, binding it to silt,
sand, and clay particles. Not only does glomalin contain 30 to 40
percent carbon, but it also forms clumps of soil granules called
aggregates. These add structure to soil and keep other stored soil
carbon from escaping.

As a glycoprotein, glomalin stores carbon in both its protein and
carbohydrate (glucose or sugar) subunits. Wright, who is with the
Sustainable Agricultural Systems Laboratory in Beltsville, Maryland,
thinks the glomalin molecule is a clump of small glycoproteins with iron
and other ions attached. She found that glomalin contains from 1 to 9
percent tightly bound iron.
A microscopic view of an arbuscular mycorrhizal fungus: Click here for
full photo caption.
A microscopic view of an
arbuscular mycorrhizal fungus
growing on a corn root. The
round bodies are spores, and
the threadlike filaments are
hyphae. The substance coating
them is glomalin, revealed by
a green dye tagged to an
antibody against glomalin.
(K9968-1)

Glomalin is causing a complete reexamination of what makes up soil
organic matter. It is increasingly being included in studies of carbon
storage and soil quality. In fact, the U.S. Department of Energy, as
part of its interest in carbon storage as an offset to rising
atmospheric carbon dioxide (CO2) levels, partially funded a recent study
by lab technician Kristine A. Nichols, a colleague of Wright's. Nichols
reported on the study as part of her doctoral dissertation in soil
science at the University of Maryland.

That study showed that glomalin accounts for 27 percent of the carbon in
soil and is a major component of soil organic matter. Nichols, Wright,
and E. Kudjo Dzantor, a soil scientist at the University of
Maryland-College Park, found that glomalin weighs 2 to 24 times more
than humic acid, a product of decaying plants that up to now was thought
to be the main contributor to soil carbon. But humic acid contributes
only about 8 percent of the carbon. Another team recently used carbon
dating to estimate that glomalin lasts 7 to 42 years, depending on
conditions.


For the study, the scientists compared different chemical extraction
techniques using eight different soils from Colorado, Georgia, Maryland,
and Nebraska. They found that current assays greatly underestimate the
amount of glomalin present in soils. By comparing weights of extracted
organic matter fractions (glomalin, humic acid, fulvic acid, and
particulate organic matter), Nichols found four times more glomalin than
humic acid. She also found that the extraction method she and Wright use
underestimates glomalin in certain soils where it is more tightly bound
than usual.
Soil scientist examines a soil aggregate coated with glomalin: Click
here for full photo caption.
In her Beltsville laboratory,
soil scientist Sara Wright
examines a soil aggregate
coated with glomalin, a soil
protein she identified in 1996.
(K9972-1)

In a companion study, Nichols, Wright, and Dzantor teamed up with ARS
chemist Walter F. Schmidt to examine organic matter extracted from the
same soils under a nuclear magnetic resonance (NMR) imager. They found
that glomalin's structure differs from that of humic acid—or any other
organic matter component—and has unique structural units.

In a current study in Costa Rica, partly funded by the National Science
Foundation, Wright is using glomalin levels and root growth to measure
the amount of carbon stored in soils beneath tropical forests. She is
finding lower levels of glomalin than expected and a much shorter
lifespan. "We think it's because of the higher temperatures and moisture
in tropical soils," she explains. These factors break down glomalin.

Forests, croplands, and grasslands around the world are thought to be
valuable for offsetting carbon dioxide emissions from industry and
vehicles. In fact, some private markets have already started offering
carbon credits for sale by owners of such land. Industry could buy the
credits as offsets for their emissions. The expectation is that these
credits would be traded just as pollution credits are currently traded
worldwide.
Soil scientist and technician examine extracted soil organic matter
constituents: Click here for full photo caption.
Soil scientist Sara Wright
(foreground) and technician
Kristine Nichols use nuclear
magnetic resonance to examine
the molecular structure of
extracted soil organic matter
constituents.
(K9971-1)

How Does Glomalin Work?

It is glomalin that gives soil its tilth—a subtle texture that enables
experienced farmers and gardeners to judge great soil by feeling the
smooth granules as they flow through their fingers.

Arbuscular mycorrhizal fungi, found living on plant roots around the
world, appear to be the only producers of glomalin. Wright named
glomalin after Glomales, the taxonomic order that arbuscular mycorrhizal
fungi belong to. The fungi use carbon from the plant to grow and make
glomalin. In return, the fungi's hairlike filaments, called hyphae,
extend the reach of plant roots. Hyphae function as pipes to funnel more
water and nutrients—particularly phosphorus—to the plants.

"We've seen glomalin on the outside of the hyphae, and we believe this
is how the hyphae seal themselves so they can carry water and nutrients.
It may also be what gives them the rigidity they need to span the air
spaces between soil particles," says Wright.
Technician checks progress of corn plants: Click here for full photo
caption.
Technician Kristine Nichols
checks the progress of corn
plants growing in containers
specially designed for
glomalin production.
(K9973-1)

As a plant grows, the fungi move down the root and form new hyphae to
colonize the growing roots. When hyphae higher up on the roots stop
transporting nutrients, their protective glomalin sloughs off into the
soil. There it attaches to particles of minerals (sand, silt, and clay)
and organic matter, forming clumps. This type of soil structure is
stable enough to resist wind and water erosion, but porous enough to let
air, water, and roots move through it. It also harbors more beneficial
microbes, holds more water, and helps the soil surface resist crusting.

Scientists think hyphae have a lifespan of days to weeks. The much
longer lifespan of glomalin suggests that the current technique of
weighing hyphae samples to estimate fungal carbon storage grossly
underestimates the amount of soil carbon stored. In fact, Wright and
colleagues found that glomalin contributes much more nitrogen and carbon
to the soil than do hyphae or other soil microbes.

Two rows of dried soil samples: Click here for full photo caption.
Dried samples of undisturbed
soil (top row) and material
left after extractable organic
matter has been removed
(bottom row). Although minerals
are the most abundant components
of soil, organic matter gives
it life and health. Soil
samples from left to right
are from Maryland, Nebraska,
Georgia, and Colorado.
(K9974-1)


Rising CO2 Boosts Glomalin, Too

In an earlier study, Wright and scientists from the University of
California at Riverside and Stanford University showed that higher CO2
levels in the atmosphere stimulate the fungi to produce more glomalin.

They did a 3-year study on semiarid shrub land and a 6-year study on
grasslands in San Diego County, California, using outdoor chambers with
controlled CO2 levels. When CO2 reached 670 parts per million (ppm)—the
level predicted by mid to late century—hyphae grew three times as long
and produced five times as much glomalin as fungi on plants growing with
today's ambient level of 370 ppm.

Longer hyphae help plants reach more water and nutrients, which could
help plants face drought in a warmer climate. The increase in glomalin
production helps soil build defenses against degradation and erosion and
boosts its productivity.

Wright says all these benefits can also come from good tillage and soil
management techniques, instead of from higher atmospheric CO2.

"You're in the driver's seat when you use techniques proven to do the
same thing as the higher CO2 that might be causing global warming. You
can still raise glomalin levels, improve soil structure, and increase
carbon storage without the risks of the unknowns in global climate
change," she says.

Putting Glomalin to Work

Wright found that glomalin is very manageable. She is studying glomalin
levels under different farming and ranching practices. Levels were
maintained or raised by no-till, cover crops, reduced phosphorus inputs,
and the sparing use of crops that don't have arbuscular mycorrhizal
fungi on their roots. Those include members of the Brassicaceae family,
like cabbage and cauliflower, and the mustard family, like canola and
crambe.

"When you grow those crops, it's like a fallow period, because glomalin
production stops," says Wright. "You need to rotate them with crops that
have glomalin-producing fungi."

In a 4-year study at the Henry A. Wallace Beltsville (Maryland)
Agricultural Research Center, Wright found that glomalin levels rose
each year after no-till was started. No-till refers to a modern
conservation practice that uses equipment to plant seeds with no prior
plowing. This practice was developed to protect soil from erosion by
keeping fields covered with crop residue.

Glomalin went from 1.3 milligrams per gram of soil (mg/g) after the
first year to 1.7 mg/g after the third. A nearby field that was plowed
and planted each year had only 0.7 mg/g. In comparison, the soil under a
15-year-old buffer strip of grass had 2.7 mg/g.

Wright found glomalin levels up to 15 mg/g elsewhere in the Mid-Atlantic
region. But she found the highest levels—more than 100 mg/g—in Hawaiian
soils, with Japanese soils a close second. "We don't know why we found
the highest levels in Hawaii's tropical soils. We usually find lower
levels in other tropical areas, because it breaks down faster at higher
temperature and moisture levels," Wright says. "We can only guess that
the Hawaiian soils lack some organism that is breaking down glomalin in
other tropical soils—or that high soil levels of iron are protecting
glomalin."

It's Persistent and It's Everywhere!

The toughness of the molecule was one of the things that struck Wright
most in her discovery of glomalin. She says it's the reason glomalin
eluded scientific detection for so long.

"It requires an unusual effort to dislodge glomalin for study: a bath in
citrate combined with heating at 250 °F for at least an hour," Wright
says. "No other soil glue found to date required anything as drastic as
this."

"We've learned that the sodium hydroxide used to separate out humic acid
in soil misses most of the glomalin. So, most of it was thrown away with
the insoluble humus and minerals in soil," she says. "The little bit of
glomalin left in the humic acid was thought to be nothing more than
unknown foreign substances that contaminated the experiments."

Once Wright found a way to capture glomalin, her next big surprise was
how much of it there was in some soils and how widespread it was. She
tested samples of soils from around the world and found glomalin in all.

"Anything present in these amounts has to be considered in any studies
of plant-soil interactions," Wright says. "There may be implications
beyond the carbon storage and soil quality issues—such as whether the
large amounts of iron in glomalin mean that it could be protecting
plants from pathogens."

Her recent work with Nichols has shown that glomalin levels are even
higher in some soils than previously estimated.

"Glomalin is unique among soil components for its strength and
stability," Wright says. Other soil components that contain carbon and
nitrogen, as glomalin does, don't last very long. Microbes quickly break
them down into byproducts. And proteins from plants are degraded very
quickly in soil.

"We need to learn a lot more about this molecule, though, if we are to
manage glomalin wisely. Our next step is to identify the chemical makeup
of each of its parts, including the protein core, the sugar
carbohydrates, and the attached iron and other possible ions." Nichols
is starting to work on just that.

"Once we know what sugars and proteins are there," says Nichols, we will
use NMR and other techniques to create a three-dimensional image of the
molecule. We can then find the most likely sites to look for iron or
other attached ions.

"Researchers have studied organic matter for a long time and know its
benefits to soil. But we're just starting to learn which components of
organic matter are responsible for these benefits. That's the exciting
part of glomalin research. We've found a major component that we think
definitely has a strong role in the benefits attributed to organic
matter—things like soil stability, nutrient accessibility, and nutrient
cycling."

As carbon gets assigned a dollar value in a carbon commodity market, it
may give literal meaning to the expression that good soil is black gold.
And glomalin could be viewed as its golden seal.—By Don Comis,
Agricultural Research Service Information Staff.

This research is part of Soil Resource Management, an ARS National
Program (#202) described on the World Wide Web at
http://www.nps.ars.usda.gov.

Sara F. Wright and Kristine A. Nichols are with the USDA-ARS Sustainable
Agricultural Systems Laboratory, Bldg. 001, 10300 Baltimore Ave.,
Beltsville, MD 20705; phone (301) 504-8156 [Wright], (301) 504-6977
[Nichols], fax (301) 504-8370.


"Glomalin: Hiding Place for a Third of the World's Stored Soil Carbon"
was published in the September 2002 issue of Agricultural Research magazine.
